microINR

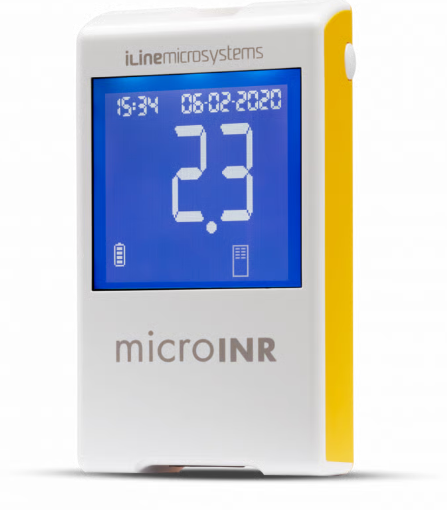

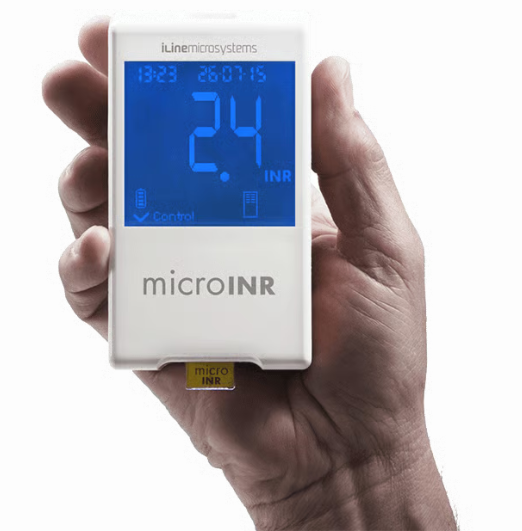

The microINR meter is an in vitro diagnostics medical device, intended to monitor oral anticoagulation therapy (OAT) with vitamin K antagonist drugs.
The microINR system refers to the readers and the analytic test strips (microINR Chips). Our system provides quantitative determination of prothrombin time (PT) in INR (International Normalized Ratio) units with fresh capillary blood performed by fingersticking.
The microINR meter has been developed to fulfill the needs of all the existing OAT monitoring models and it is intended for patient self-testing use, as well as for healthcare professionals at Point of Care settings.
microINR employs patent granted technology, based on the iLine’s Core Technology, and provides accurate and reproducible results as proven in extensive and independent performance evaluations.
Meter dimensions
119 x 65 x 35 mm
Screen dimensions
45 x 45 mm
USB interface
For results transfer
View data history
Up to 199 tests and error messages
Power supply
Rechargeable battery (approx. 70 Test per battery cycle)
2 Buttons
For time/date settings, checking memory and turning on/off
microINR

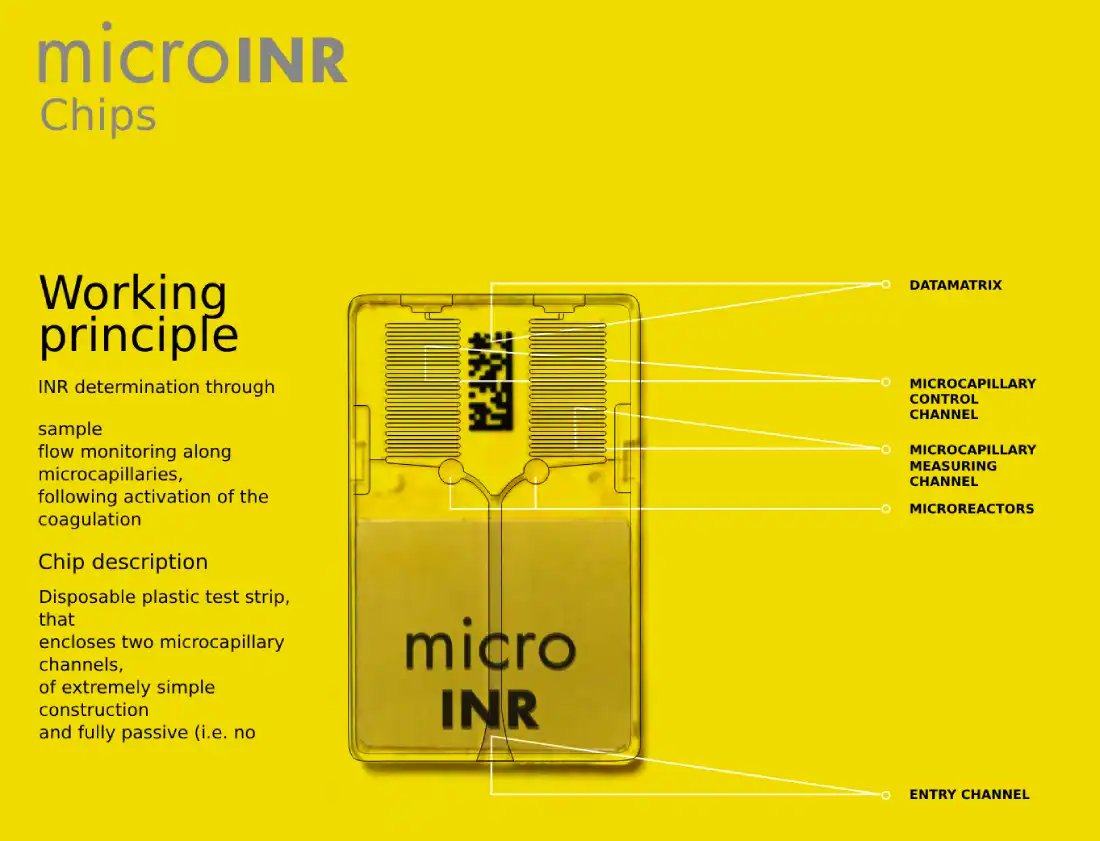

Chip specifications
- High sensitivity human recombinant thromboplastin
- Chip expiry and calibration parameters coded and integrated into the Chip
- Individually packed
- Storage at room temperature (2-25ºC / 36-77ºF)
- 15 Months shelf life
System specifications
- 3 μL sample volume required
- Measurement range: 0.8 – 8.0 INR
- System ISI: Approx. 1
- Multilevel on-board QC performed in each assay
