iLine Microsystems S.L.
iLine Microsystems is a biotech company researching, developing, and manufacturing POCT IVD devices in the Hemostasis area since 2007. The company incorporates proprietary technology that provides innovative and highly reliable products for the current and future needs of the changing healthcare models.
microINR System
The microINR System is an in vitro diagnostics medical device, intended to monitor oral anticoagulation therapy (OAT) with vitamin K antago-nist drugs.
The microINR System refers to the developed readers (microINR and microINR Link Meters) and the analytic test strips (microINR Chips).
Our system provides quantitative determination of prothrom bin time (PT) in INR (Interna tional Normalized Ratio) units ith fresh capillary blood performed by fingersticking.
The microINR System has been developed to fulfill the needs of all the existing OAT monitoring models and have been CE mark certified for patient self-testing and for use by healthcare professionals.
The System employs patent granted technology, based on the iLine’s Core Technology and provides accurate and reproducible results as proven in extensive and independent performance evaluations.
Meters description

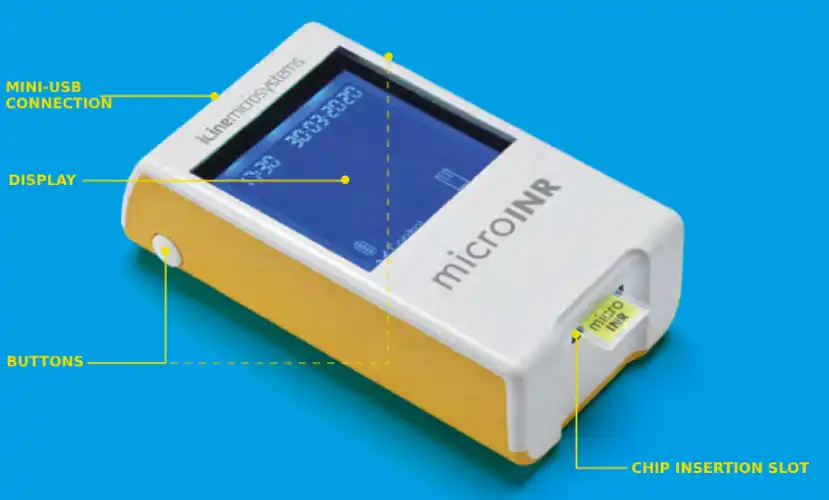

Consisting of a Machine Vision System (MVS) that provides interfacing and detection means, the microINR Meter also offers the best qualities of a portable coagulometer:
no buttons to be pressed during the testing, automatic strip identification, minimum sample volume and easy-to use design.
microINR
Meter dimensions
119 x 65 x 35 mm
Screen dimensions
45 x 45 mm
USB interface
For results transfer
View data history
Up to 199 tests and error messages
Power supply:
Rechargeable battery (approx. 70 Test per battery cycle)
2 Buttons
For time/date settings and turning on/of
Chip specifications
- High sensitivity human recombinant thromboplastin
- Chip expiry and calibration parameters coded and integrated into the Chip
- Individually packed
- Storage at room temperature (2-25ºC / 36-77ºF)
- 15 Months shelf life
System specifications
- 3 μL sample volume required
- Measurement range: 0.8 – 8.0 INR
- System ISI: Approx. 1
- Multilevel on-board QC performed in each assay
